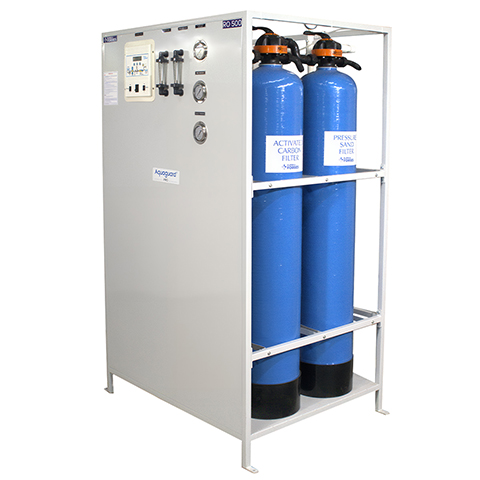

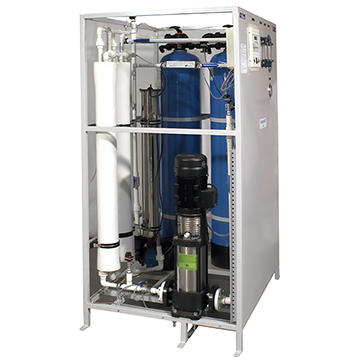

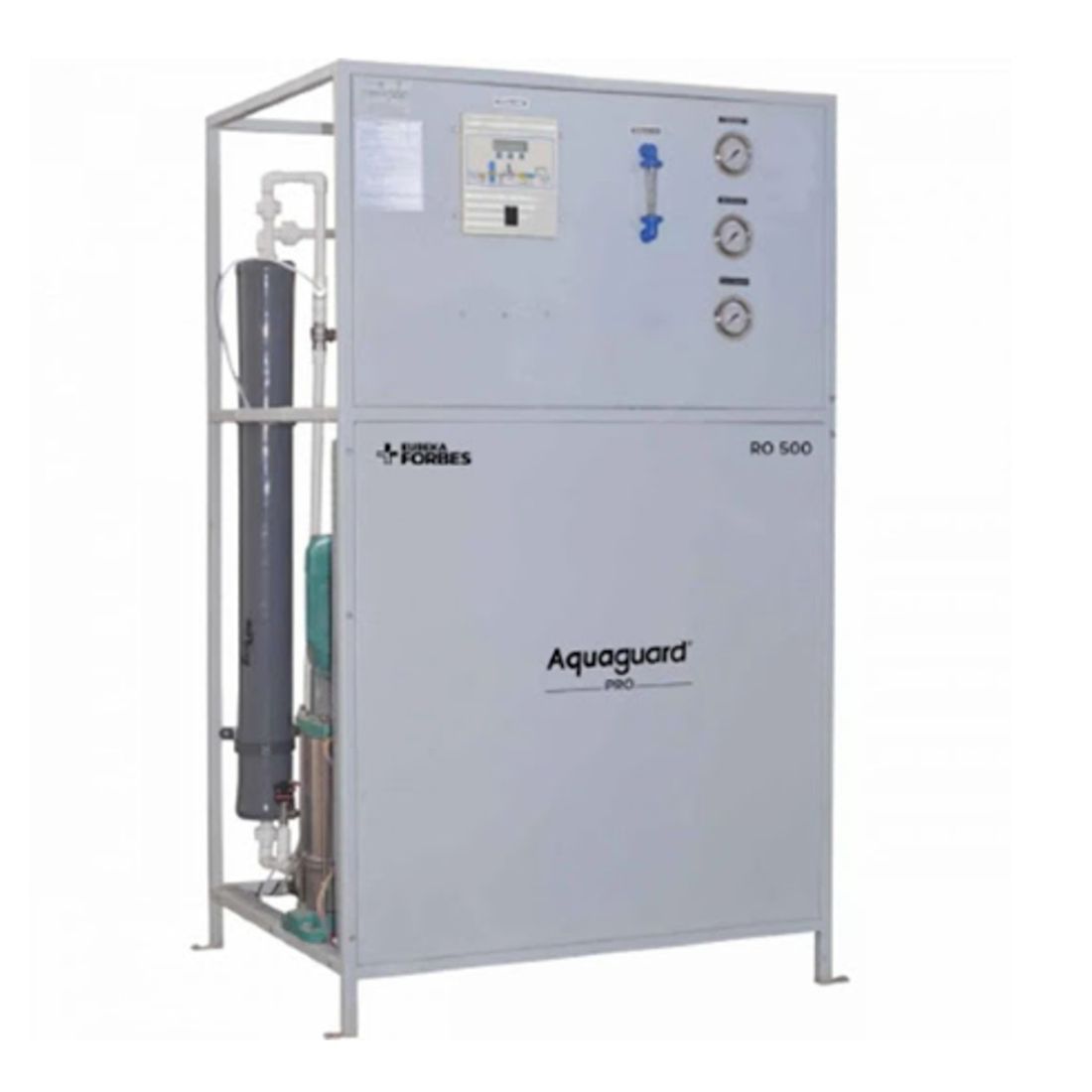

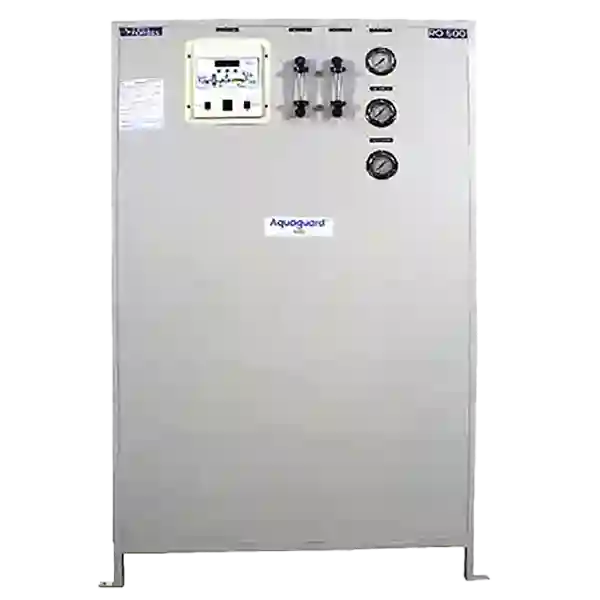

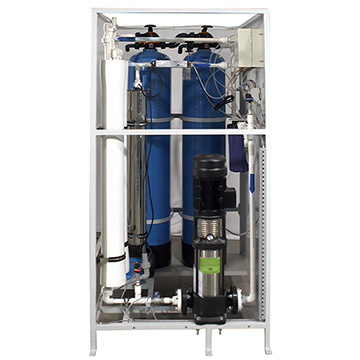

Aquaguard RO-500 RO Plant

Aquaguard RO-500 RO Plant is a high-capacity commercial reverse osmosis water purification system designed to produce up to 500 litres of purified water per hour (LPH). Equipped with RO+UV technology, 5-stage advanced purification, microprocessor-based control, remote monitoring, and a completely pre-assembled design, it delivers a reliable and continuous supply of safe drinking water for hospitals, IT parks, factories, hotels, and large commercial establishments.

Send Inquiry

SKU: N/A Categories: , Tags: , Product ID: 8630

Description

Aquaguard RO-500 RO Plant

The Aquaguard RO-500 RO Plant is a high-performance commercial reverse osmosis system engineered to meet the water purification requirements of large-scale commercial and industrial facilities. Designed for continuous operation, it provides a dependable supply of purified drinking water for IT parks, hospitals, manufacturing plants, hotels, educational institutions, and corporate campuses.

Featuring advanced RO+UV purification, a 5-stage purification process, intelligent automation, and a completely pre-assembled construction, the RO-500 delivers exceptional performance while reducing installation time and maintenance requirements. Its scalable design and remote monitoring capabilities make it an ideal solution for businesses requiring efficient and centralised water purification. :contentReference[oaicite:0]{index=0}

Key Features

500 LPH High Purification Capacity
Produces up to 500 litres of purified water every hour, making it ideal for facilities with high daily water consumption.

RO + UV Purification Technology
Advanced RO and UV purification effectively removes dissolved impurities, bacteria, viruses, heavy metals, and harmful contaminants before water reaches the dispensing points.

5-Stage Advanced Purification
Multiple stages of filtration ensure consistent water quality and comprehensive protection against contaminants.

Microprocessor-Based Control
Intelligent control logic enables smooth, automated, and energy-efficient system operation.

Remote Monitoring System
Monitor system performance remotely for better operational control and preventive maintenance.

Completely Pre-Assembled Unit
Delivered pre-wired and pre-piped for quick installation, easy commissioning, and reduced setup time.

Centralised Water Purification
Designed to supply purified water to multiple dispensing units across large commercial facilities.

Customisable & Scalable Design
Expandable up to 10,000 LPH to meet growing commercial and industrial water purification requirements.

Applications

Ideal for IT parks, manufacturing plants, hospitals, hotels, educational institutions, factories, commercial kitchens, shopping complexes, corporate campuses, industrial facilities, and organisations requiring a centralised purified water supply.

Why Choose Aquaguard RO-500?

The Aquaguard RO-500 combines high-capacity RO and UV purification, intelligent automation, remote monitoring, and a scalable design to deliver reliable commercial water purification. Its robust engineering, quick installation, and low-maintenance operation make it an ideal solution for businesses that require a continuous supply of safe, hygienic drinking water. :contentReference[oaicite:1]{index=1}

Additional information

Production Capacity

1 year, 2 years

Technical Specifications

Technology :- RO+UV
Water Storage Tank Capacity :- No Storage
Temperature Options :- Ambient
Dimensions :- 1.1 x 0.8 x 1.7 m
Outer Body Material :- NA
Storage Tank Material :- No Storage
Number of Purification Stages :- 5
Purification Modules :- Sedi-Filter, Chemi Block, Reverse Osmosis Cartridge, UV e boiling, Active Copper Booster Cartridge, Calcium, Magnesium & Zinc
Netweight :- 310 kg
Number of Faucets :- NA
Water Outlet Temperature at Rated Condition :- NA
Purification Capacity (Max.) :- 500 LPH
Water Recovery (%) :- 45%
Input Water Pressure :- 2.5 Bar
Power rating in Watts(Max) :- 1.9 kW ±10%
Applicable Total Dissolved Solids (TDS) Range :- 2000 ppm(max.)
Total hardness (max) :- 500 ppm(max.)
Turbidity :- <5 NTU
Iron Content :- Nil
SDI (Silt Density Index) :- <3
Cooling Capacity (at Comfort Level) :- NA
Thermal Insulation for Storage Tank :- NA
Operating Input Voltage :- 170-260V AC, 1 Phase, 415V AC, 3 Phase
Operating Temperature :- 10°C to 40°C
UV Lamp Power (Watts) :- 25W
Maximum Flow :- 500 LPH
Average Flow :- 400 LPH
Permeate TDS :- <150 mg/L
Pressure Sand Filter (PSF) Capacity :- 1200 LPH
Activated Carbon Filter (ACF) Capacity :- 1200 LPH
6 Micron Cartridge Filter (PP/SF) :- 1 x 10"
RO Membrane Size :- 40" x 40" (2 Nos.)
Anti-Scalant Dosing System Tank Capacity (Litres) :- 60 Lit
